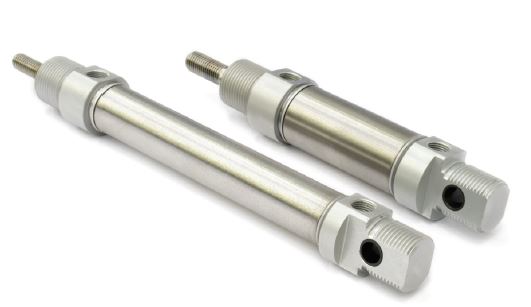

Mini-Cylinders with Bush
ISO 6432 Ø8-25

Technical Information

Covers

Anodized Aluminium

Tube

AISI 304 Stainless Steel

Piston

Brass

Seals

Ø8-10-12 Polyurethane – NBR
Ø16-20-25 Polyurethane

Guide Bush

Sintered Bronze

Rear Bush

Polymer

Piston Rod

Stainless Steel AISI 303

Max Pressure

10 bar

Working Temperature

Ø8-10-12 from -20°C to +80°C with dry air
Ø16-20-25 from -35°C to +80°C with dry air

Fluid

Filtered, lubricated or not, compressed air
