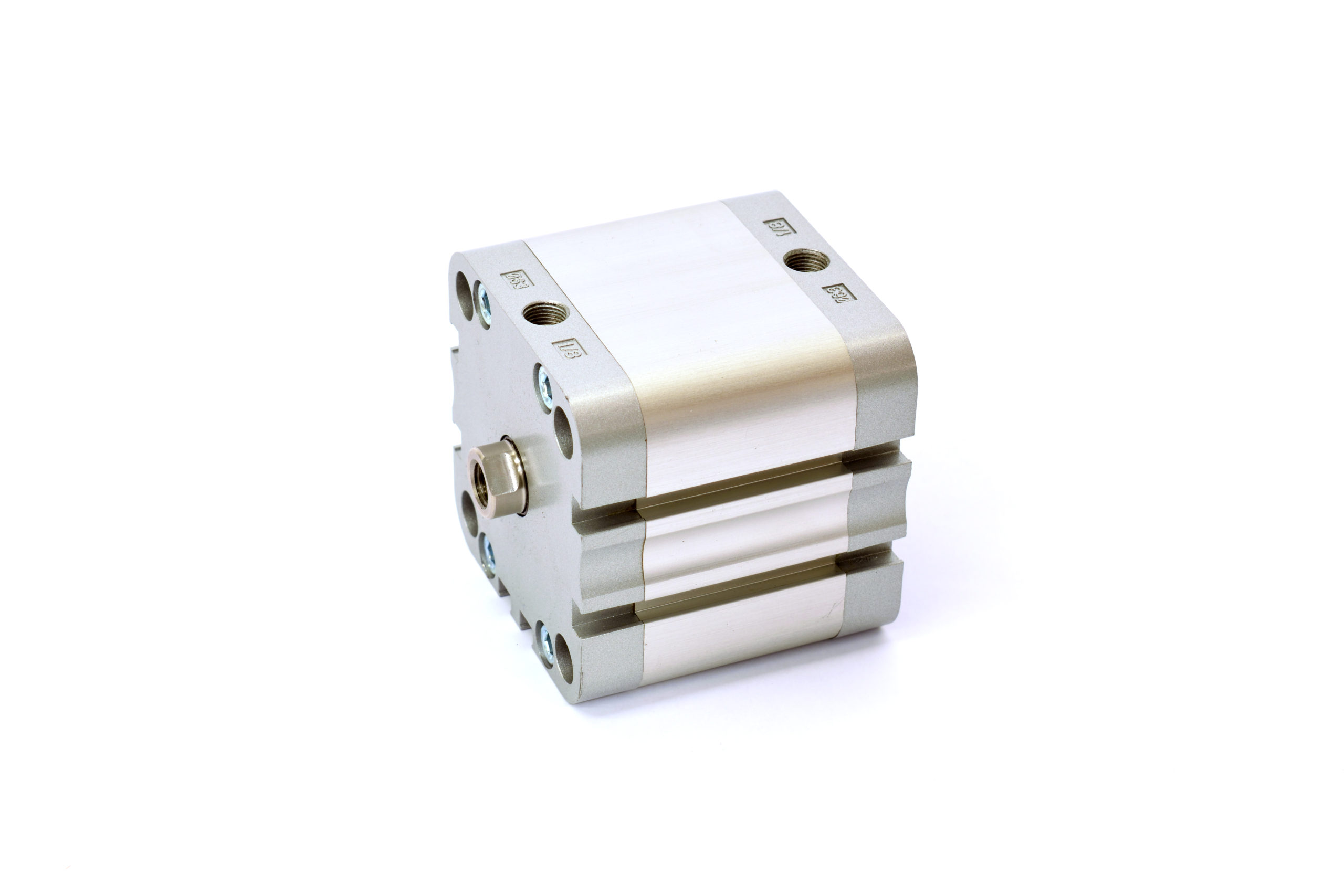

Compact Cylinders C1K series
ISO 21287 Ø20-100
Technical Information
Covers
Painted die-cast aluminium
Tube
Anodized aluminium
Piston
Ø20-25 POM–C / Aluminium
Ø32-100 Aluminium
Seals
Polyurethan - NBR
Guide Bush
Steel + PTFE
Piston Rod
AISI 303 Stainless Steel
Max Pressure
10 bar
Working Temperature
From -20°C to +80°C with dry air
Fluid
Filtered, lubricated or not, compressed air
